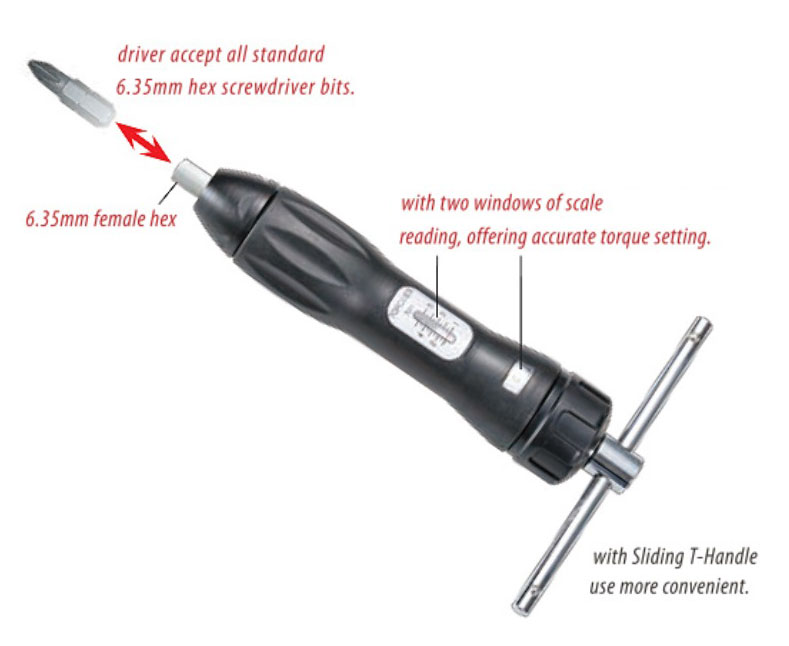

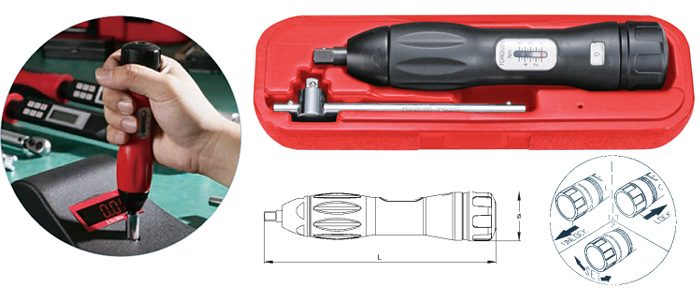

                Torque Screwdriver  Adjustable Torque

¡@

Torque Screwdriver  Adjustable Torque Torque Screwdriver  Adjustable Torque



Item No.

Square

Driver

Range

Scale

Nm

Diameter

mm

L (mm)

Net weight (g)

Packing

CH181803-61402NS

6.35mm/

1/4¡¨

0.4-2Nm

0.05

24.8

134

128

30pcs/ctn

CH181803-61405NS

6.35mm/

1/4¡¨

1-5Nm

0.1

33.8

160

128

30pcs/ctn

CH181803-61408NS

6.35mm/

1/4¡¨

2-8Nm

0.1

33.8

160

282

30pcs/ctn

CH181803-61410NS

6.35mm/

1/4¡¨

2-10Nm

0.1

33.8

160

300

30pcs/ctn



Specifications:

*Application for low torque assemblies, precision applications.

*Accuracy: +-6%

*Easy and flexible operation of design

*Torque range: 0.1Nm-12Nm (1in.lb-120in.lb)

*Torque setting types: adjustable torque type & preset torque type.

*CW Direction.

*Supplied in a plastic box.



¡@



¡@

¡@
