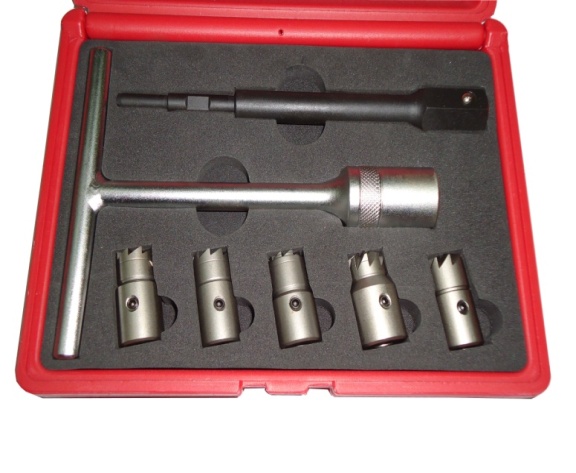

Diesel Injector Seat Cutter Set

”@

CH121436-5

Diesel Injector Seat Cutter Set

Description:

* Identify injector "blow-by" exists (see previous page for possible symptoms).

* Gain access to the injectors and remove them.

* Select required reamer onto pilot post and tighten internal hex screw.

* Place assembled cutter into injector recess.

* Using the T bar and socket supplied apply only a small amount of pressure whilst turning the cutter in a clockwise direction only.

* Use a small amount of light lubricant whilst performing the cut to reduce chattering and help give a flat cut.

* Do not over cut the seat only remove enough metal to form a good seat.

* Fit injectors as per manufacturer”¦s instructions.

Specification:

* CH121436-01, 15 x 19mm Flat Reamer for Universal injector.

* CH121436-02, 17 x 17mm Flat Reamer for Delphi/Bosch injectors (BMW/PSA/Renault/Ford).

* CH121436-03, 17 x 19mm Flat Reamer for Bosch injectors (Mercedes CRD).

* CH121436-04, 17 x 21mm Angled Resmer for Fiat/Iveco.

* CH121436-05, 17mm Angled for Fiat/Iveco, Ford

* T handle*1.

* Pilot post*1.

* Material: CR-V

”@
