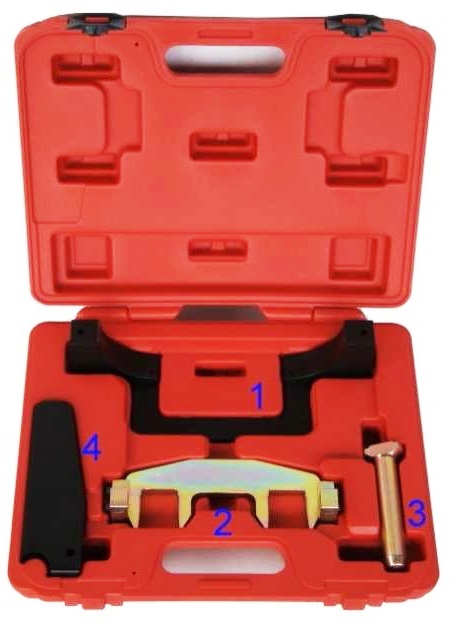

BENZ (M271) Alignment Tool Kit

¡@

¡@

CH0911120

BENZ (M271) Alignment Tool Kit



Description:

* No.1 for drawing in the timing chain. Retains timing chain with camshaft sprockets in proper timing position.

* No.2 makes it possible to position the camshafts in the installed position.

* No.2 makes it possible to slacken and tighten the bolts attaching the camshaft gear.

* No.3 is to install the plug into the timing case cover (access to chain tensioner).

* No.4 is for unloading the timing chain tensioning device. Release the timing chain.

* Applicable: BENZ (M271)



¡@

¡@

¡@
