Engine Timing Tool Set for VAG-2.4D

¡@

¡@

¡@

CH0911101

Engine Timing Tool Set for VAG-2.4D



Description:

* Set of engine timing locking tools for use on Volkswagen 2.4D with engine codes AAB, AJA(02/95-03).

* The correct alignment is achieved by placing equal thickness of shims (C) between both ends of the bracket and the cylinder head.

* Camshaft Setting Strap (B) is used to set the correct timing position of the camshaft.

* The centre Part of the bracket fits into the slotted end of the camshaft and the ends of the bracket locate on thecylinder head.

* Injection Pump Pulley Setting Spigot (D) is 15.4mm in diameter and is used on engines with a one piece Injection Pump Sprocket.

* The Crankshaft Damper Holding Tool (A) prevents the damper from rotating whilst unfastening and refastening the centre bolt.

* This tool should be used with 3/4¡¨D power bar.

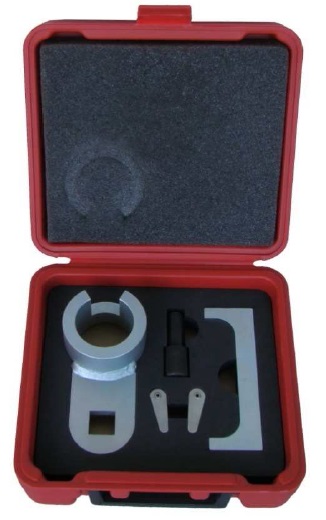

* Content

¡C Crankshaft Damper Holding Tool

¡C Crankshaft Setting Strap

¡C Injection pump setting spigot

¡C Shims x 2



¡@

¡@

¡@

¡@
