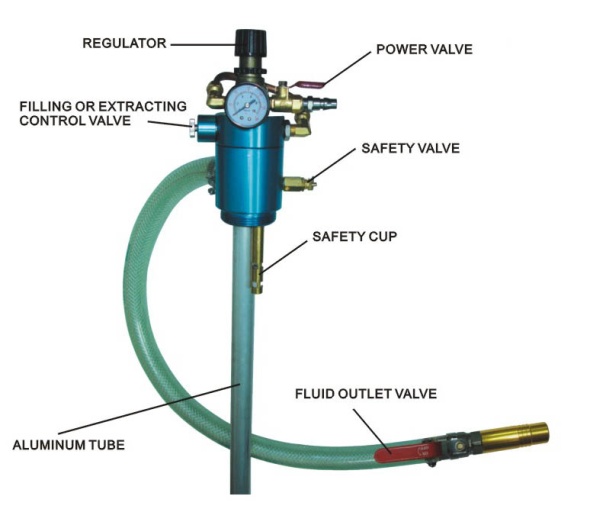

Pneumatic High Flow Oil & Liquid Dispenser PAT.





Pneumatic High Flow Oil & Liquid Dispenser PAT.

¡@

¡@

CH090917-A

Pneumatic High Flow Oil & Liquid Dispenser PAT.



Description:

* Working pressure: 90psi.

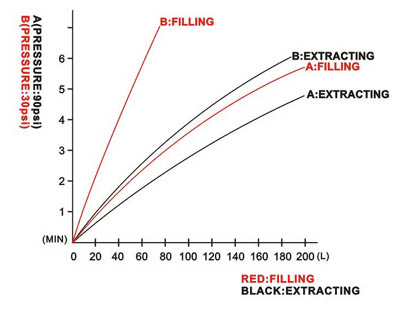

* 50 Gal. (CPC circluation oil R68) extracting or filling only need 6 minutes!

* Ideal for 50 Gal. pneumatic pump dispenser.

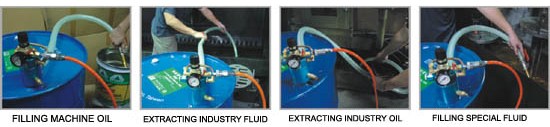

* Simple and easy to operate filling & extracting for non-corrosive liquids.

* Pneumatic operational non-spark.

* Safety cup for automatic cut-off extracting.

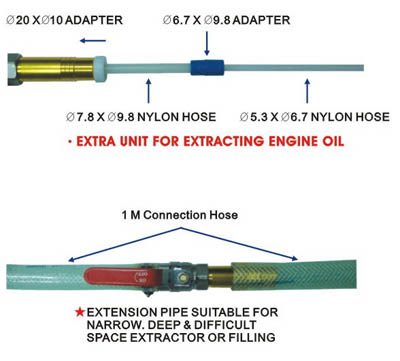

* Extension pipe suitable for narrow, deep & difficult space extracting or filling.



Specifications:

* Air Inlet: 1/4¡¨

* Avg. air cons.: 2.5cfm

* Working pressure: 30-90psi



Operation:



¡@

¡@

¡@

¡@

¡@

¡@
