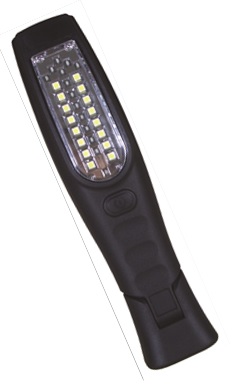

Angle Adjustable 6W LED Working & Warning Light

¡@

¡@

Item No: CH090830

Angle Adjustable 6W LED Working & Warning Light
AC/DC Rechargeable Battery

Specification:

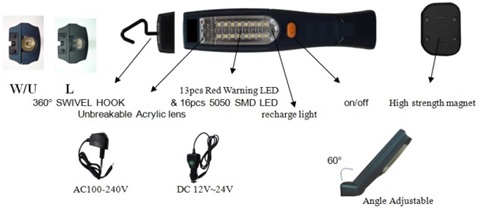

1. LED quantity: Red LED*13 + 5050 SMD*16 with top light LED*4 or 3W LED*1 or U.V*1
2. LI-ION rechargeable battery: 3.6V 2250mAH.
3. Charger input: AC100 ~ 240V 50/60Hz DC12V~24V
4. Power output: 5.0V 1000mAH.
5. Charger time: 3.5 ~ 4.0 hours.
6. Active time: 3.0 hours
7. Storage temperature: -20ºC to 70ºC.
8. Operation temperature: -5ºC to 50ºC.

Usage:
1. Push button switch:
a. Press switch button once: 16pcs of LED light turn on.
b. Press switch button twice: top light turn on.
c. Press switch button three times: 13pcs red warning turn on.
d. Press switch button four times: all light off.

During charging, red light (recharge light) on, after fully charged red light off.

Caution:
1. First time use, please fully charge for 3~4 hour.
2. When the light weak, please turn off the power before charging.
3. Please fully charge before long period storage.
4. Please keep away from fire.

PS: LED sector: 120º At 50 cm: 360 LUX
Waterproof grade: IP65
¡@
