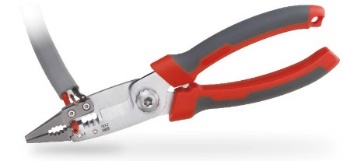

Multi-Function Electrician Diagonal Pliers (Stranded Wire)

Item No.: CH041155-DS

Feature:

Multi-Function Electrician Diagonal Pliers (Stranded Wire)

Compact Design

* Light weight: 30% lighter than other pliers to reduce hand fatigue

* Compact design: easy to work in small or tight spaces with the narrow design

Long Lasting Cutting Blades:

* Specially hardened edge to gest greater durability

* Precision ground for long lasting sharpness and clean cuts

Multi-Function Electrician Diagonal Pliers (Stranded Wire)

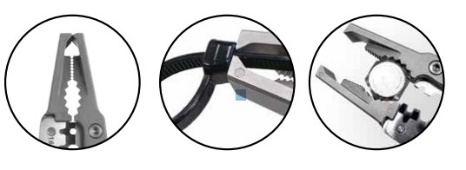

Diagonal Pliers

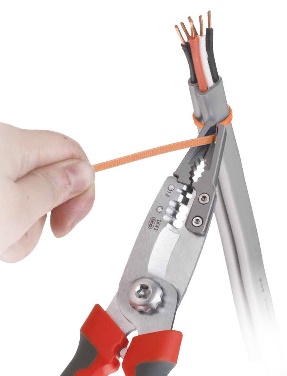

* The tip cutter cuts off zip tie up to 4.8mm wide

* Fasten the zip tie and get tighter tension

* Anti-slip serrated teeth to grip zip tie when pulling to get righter tension

* Curved jaw vise for a secure grip

Multi-Function Electrician Diagonal Pliers (Stranded Wire)

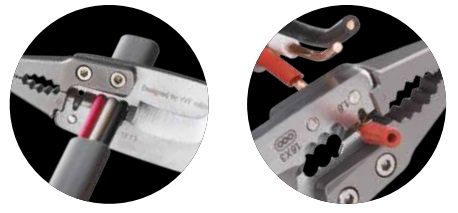

Stripping Holes

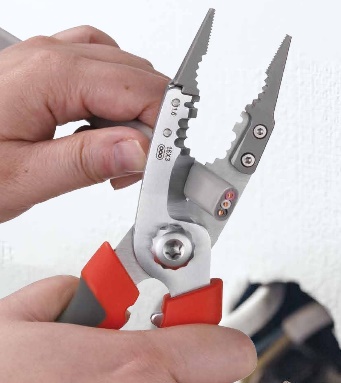

* Precise stripping of solid wire, stranded wire and other nonmetallic sheathed cable

* Size of stripping holes can be customized.

Multi-Function Electrician Diagonal Pliers (Stranded Wire)

Terminal Crimper in Handle

* Equipped with an integrated terminal crimper for added convenience

* Crimping terminal 5.5mm

Multi-Function Electrician Diagonal Pliers (Stranded Wire)

Specifications:

*Stranded Wire: 10-18AWG.

*Solid wire: 8-16AWG

*Cutting capacities:Cables up to Dia.15mm, 22mm² IV wire, Soft wire: Dia2mm.VCT 5.5mm² x 3C

*Stripping holes:Removing insulation on 8-16AWG solid wire, 10-18AWG stranded wire.

*Full length: 198mm 8”.

*Ergonomic handles to fit any hand comfortably.

*Handles mad of PP and TPR overmolded.

*Blades made of 4mm High Carbon Alloy Steel with induction hardened on cutting edge, HRC60-62.

*Plier head made of MIM.

*Bolt made of JIS SCM 435 alloy steel security bolt (class 10.9).

*Lock nut mad of SUS 302 stainless steel.

*Weight: 180g
